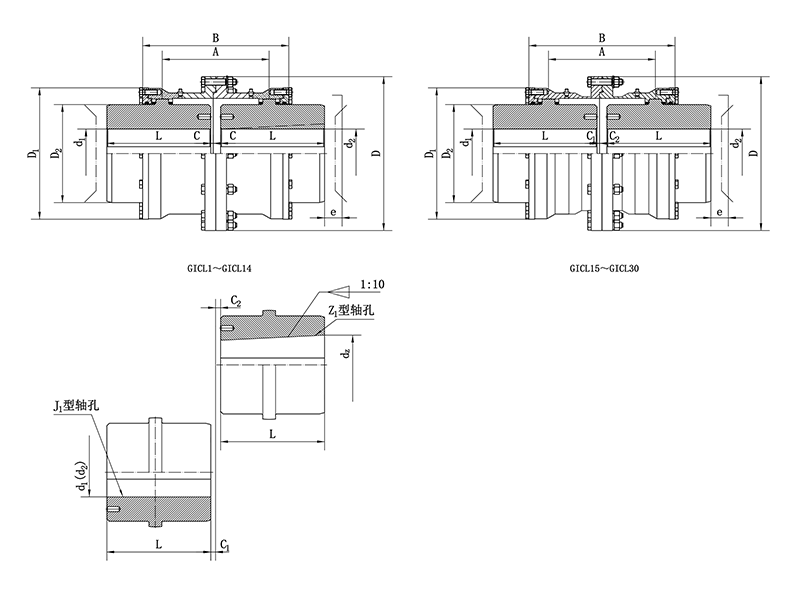

GICL gear coupling

The CLZ gear coupling of Menowa is a rigid coupling. The gear coupling is composed of internal gear ring with the same number of teeth and flange half coupling with external teeth. The so-called drum gear means that the outer gear is made into a spherical surface with center on the gear shaft line. The backlash is larger than that of ordinary gears. The drum gear coupling can allow larger angular displacement (compared with the straight gear coupling), which can improve the contact conditions of the teeth, enhance the ability of torque transmission and prolong the service life. Contact state along tooth width with angular displacement. Our coupling is able to compensate radial, axial and angular axial deviation, and has the advantages of compact structure, small radius of gyration, large bearing capacity, high transmission efficiency, low noise and long maintenance period. It is especially suitable for low-speed and heavy-load working conditions, such as metallurgy, mining, lifting and transportation, and also suitable for shafting transmission of machinery related to petroleum and chemical engineering and general machinery.

GICL gear coupling has the following characteristics:

The gear coupling can allow larger angular displacement (compared with the straight gear coupling), which can improve the contact conditions of the teeth, enhance the ability of torque transmission and prolong the service life.

It has the advantages of compact structure, small turning radius, light weight, large bearing capacity, high transmission efficiency, low noise and long maintenance period. It is suitable for low-speed and heavy-duty environment.
